TX7 Intelligent Fire Alarm System

Home TX7 Intelligent Fire Alarm System TX7211 Addressable Sounder Cir...

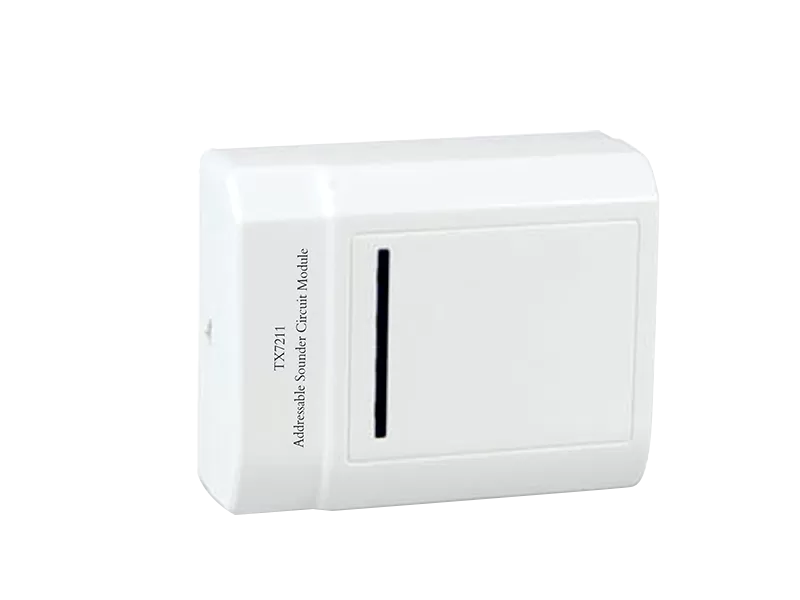

TX7211 Addressable Sounder Circuit Module

EN54-18 Compliance
Drive power to conventional sounder or fire bell Intelligent self-diagnosis of open circuit
LED status indicator
Ousite Adjustable Parameter
Loop and external power input
Parallet connecting up to 10 fire alarm(<500mA)
Surface mounting with fix base for simple installation

Get A Quote

Download Resources

Download Our Product Files

Download Brochure Download Datasheet

Description
Specifications
Cases
FAQ
Related Products

Technical Specifications

Input Voltage	24VDC [16V to 28V] Power: 24VDC [20VDC–28VDC]
Current Consumption	Loop Standby: 1.5mA, Alarm: 10mA External PSU Standby: 4mA, Alarm: 500mA
End of Line Resistor	5.1 Kohms / ¼ W
Material / Colour	ABS / White Glossy finishing
Dimension (L×W×H)	108 × 86 × 38 mm
Weight	154g (with Base), 83g (without Base)
Humidity	0 to 95% RH, Non-condensing
