TX7 Intelligent Fire Alarm System
Home TX7 Intelligent Fire Alarm System TX7232 Base Mount Short Circui...

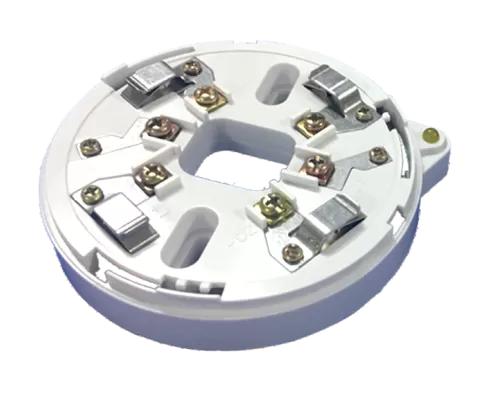

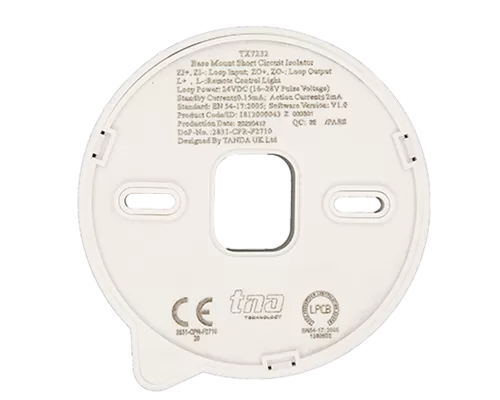

TX7232 Base Mount Short Circuit Isolator

  • EN 54-17 and EN54-13 Compliance
  • In the event of a short circuit isolates faulty parts of theloop.
  • Automatically resetting once the fault has been cleared
  • Can monitor up to 70 devices
  • LED status indicator
  • Loop powered device
  • Surface mounting with fix base for simple installation
Get A Quote
Download Resources
Download Our Product Files
Download Brochure Download Datasheet

Technical Specifications

Approvals LPCB / CE-CPR
Input Voltage 24VDC [16V to 28V]
Current Consumption Standby ≤0.15mA, Alarm ≤2mA
Protocol T&A
Number of Monitored Devices Maximum up to 70 Devices
Output Impedance 480 mΩ
Indicator Status Normal: Single blink / Active: Steady-on
Material / Colour ABS / White Glossy finishing
Dimension / Height Diameter 100.7 mm / 35 mm
Operating Temperature -10°C to +50°C
Humidity 0 to 95% RH, Non-condensing
