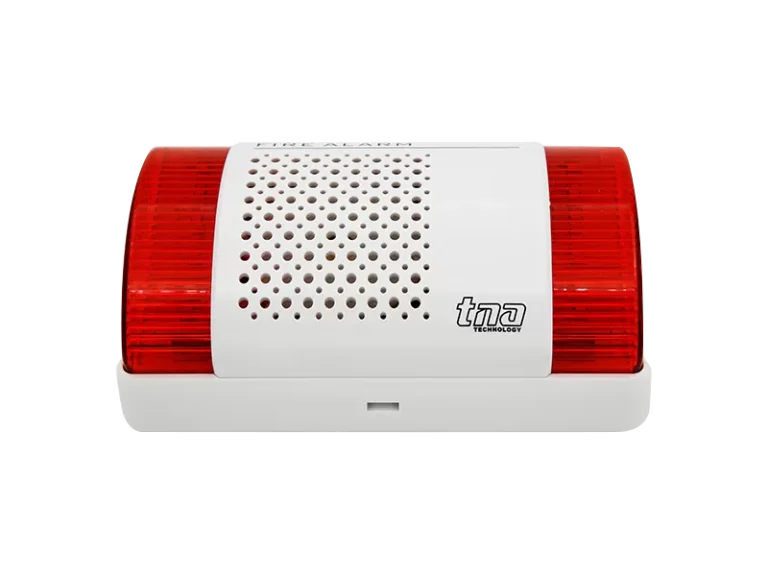

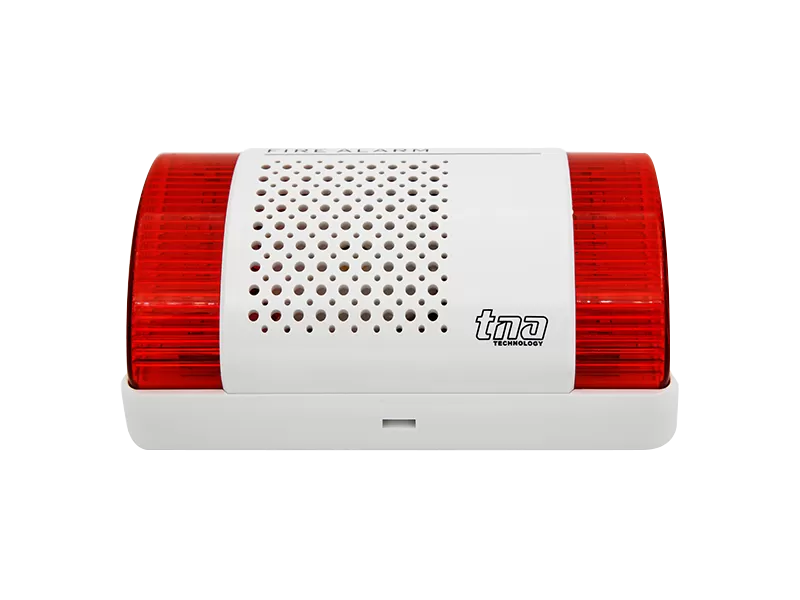

TX7301 Intelligent Sounder and Strobe

Get A Quote

Download Resources

Technical Specifications

Input Voltage	Loop Power: 24VDC [18V to 27.5V] External PSU: 24VDC [20V to 27.5V]
Typical Current [Loop and External PSU]	Loop Standby: 0.7mA, Alarm: 1.5mA External PSU Standby: 0.6mA, Alarm: 22mA
Saving Current	Standby: 1.2mA, Alarm: 9mA [Loop powered]
Protocol / Addressing	T&A, Value range from 1 to 254
Single Address	Evacuate Tone
Dual Address	1st Alert Tone / 2nd Evacuate Tone
Sound Level Pressure	102 dB(A) at 1 meter
Strobe Light	10 Highlights LED
Material / Colour	ABS / Red Glossy finishing
Dimension / L×W×H	152.5 × 88.5 × 46.75 mm (without base)
Weight	184g (with Base), 124g (without Base)
Class	Type A, Indoors
Operating Temperature	-10°C to +50°C
Ingress Protection Rating	IP21
Humidity	0 to 95% RH, Non-condensing
