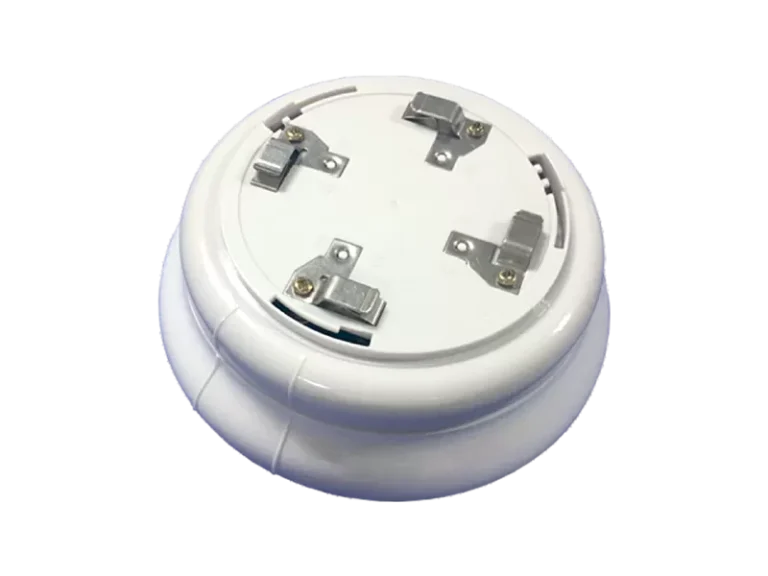

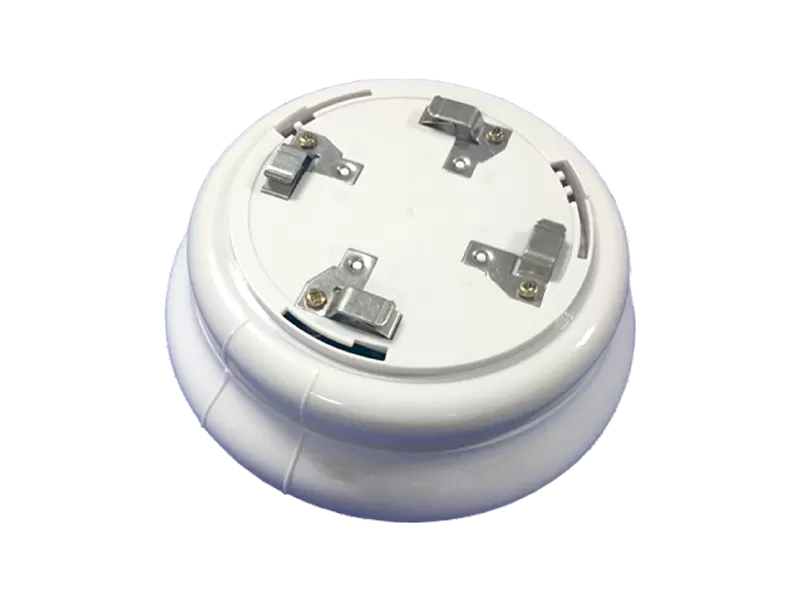

TX7322 Addressable/Conventional Sounder Base

Get A Quote

Download Resources

Technical Specifications

Input Voltage	Loop Power: 24VDC [16V to 28V]
Current Consumption	Standby ≤0.8mA, Alarm: ≤4mA [Loop powered]
Protocol / Addressing	T&A, Value range from 1 to 254
Addressing Mode	Non-coding: Alarm Tone Single address: Alarm Tone Dual address: 1st Warning / 2nd Alarm
Material / Colour	ABS / White Glossy finishing
Diameter / Height	D: 140 mm / H: 59.1 mm (with cover)
Weight	194g (with cover) / 176g (without a cover)
Class	Type A, Indoors
Ingress Protection Rating	IP30
Operating Temperature	-10°C to +55°C
Humidity	0 to 95% RH, Non-condensing
